Pile Handling Systems From Koenig & Bauer

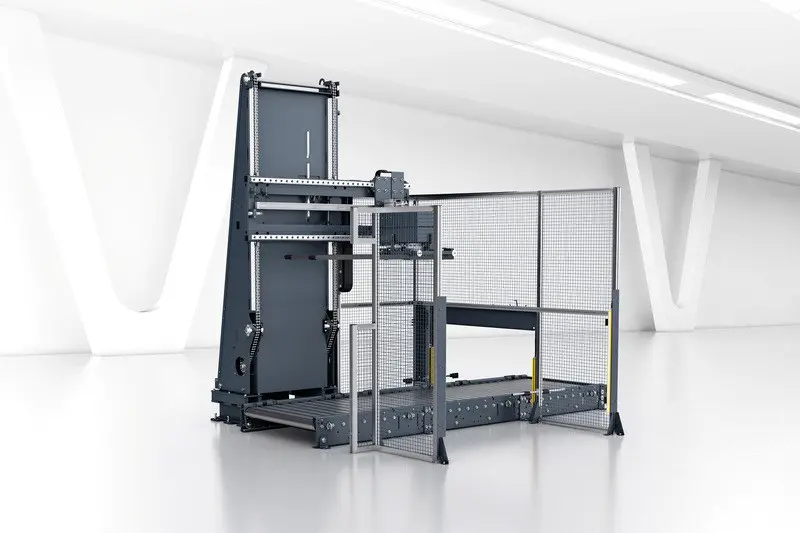

Designed to optimise throughput on coating lines, the pallet changer type 775 enables automated pile changing. The pallet changer reduces the change time down to 30 seconds depending on the installed version.

Maintaining a continuous sheet flow through the thermal oven reduces temperature fluctuations associated with extended production idle periods during production runs.

• Automated pile changing increases net operating time and line throughput
• Continuous sheet supply limits oven idling time and stabilises energy demand
• Ergonomic and convenient
• Rotatable fork designed for enhanced operator comfort
• Optional: Swivel fork for removal of empty pallet

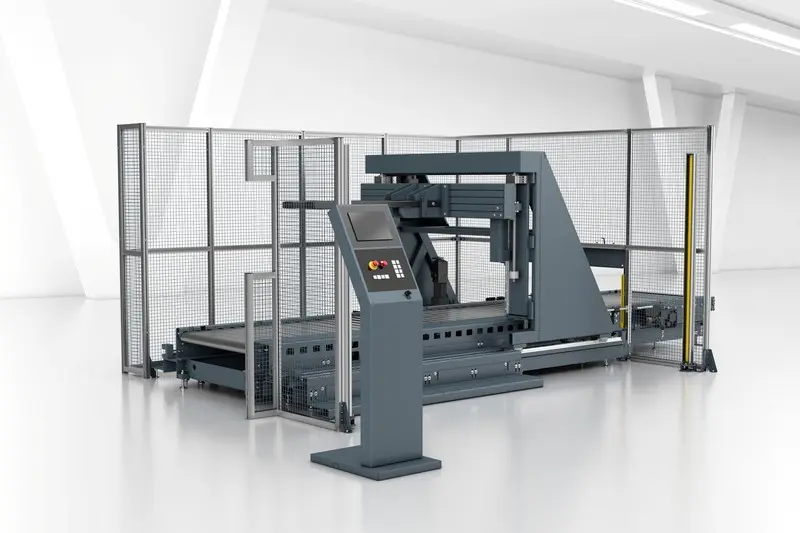

The pallet changer type 637 is designed for long job runs with multiple pallets. The automatic change process reduces non-production time, enabling standardised changeover cycles with reduced reliance on manual intervention. Specifically designed for MetalStar printing lines, the automatic height compensation supports dependable change processes.

• Automated pile changing increases net operating time and line throughput
• Convenient and operator-friendly design

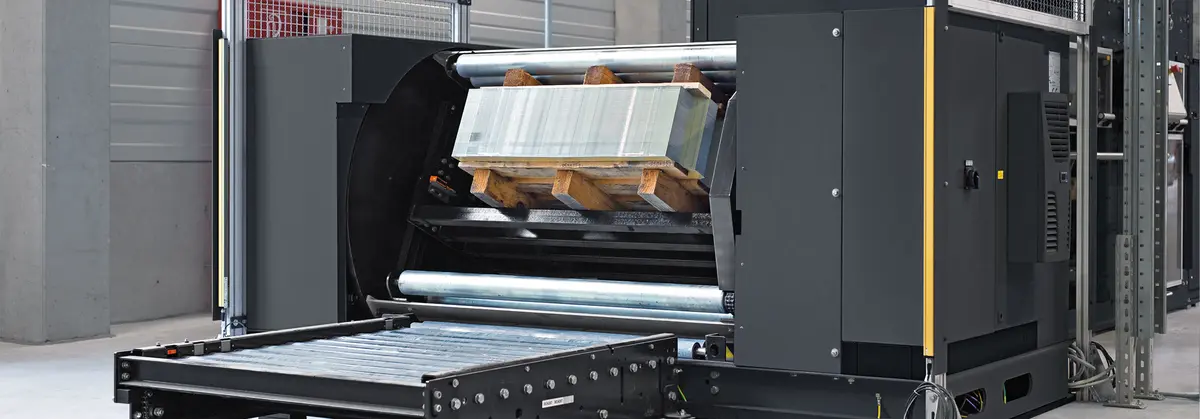

The pile turner type 823 is engineered to prevent material handling bottlenecks. It provides automated pile turning designed to match the rated output potential of your metal decorating line. Deploy it as a standalone pile turning station or fully integrate it into your logistics track on the feeder type 781 or stacker type 808. When integrated, the system is seamlessly managed by your central line control for automated synchronisation. In standalone operation, it is capacity-rated to process the material throughput of up to three MetalStar 4 metal decorating lines.

• Reliable and robust
• Automated and controlled turning
• Clear status visualisation thanks to integration into the main line HMI
• Flexible process integration via inline or offline installation options

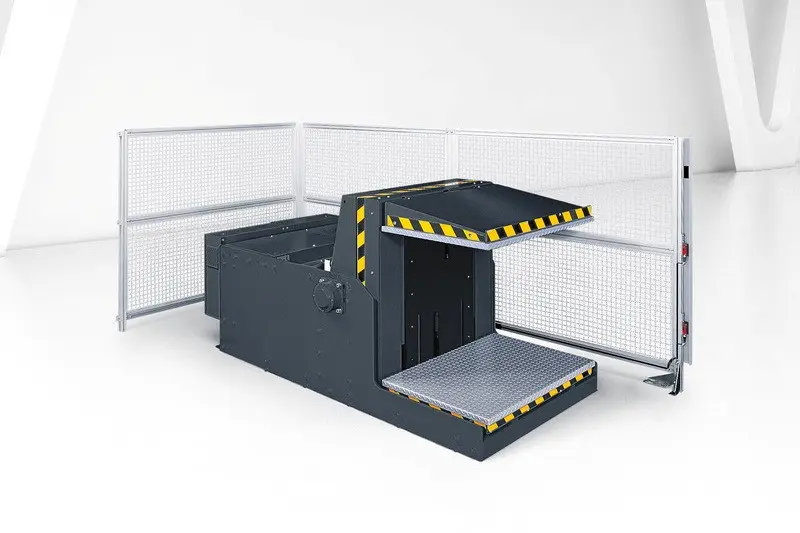

Our pile turners were developed specifically for use in metal decorating. They handle metal sheets up to a maximum format of 1,250 x 1,000 mm and stack weights up to 3,500 kg, making them suitable for all standard industry applications. Particular emphasis has been placed on a robust mechanical design to support operational availability and protective sheet turning. Engineered for efficient pile rotation, the hydraulic pile turner type 822 serves up to seven production lines.

• Proven operational reliability under heavy-duty conditions
• Protective and fast turning
• Developed specifically for use in metal decorating
