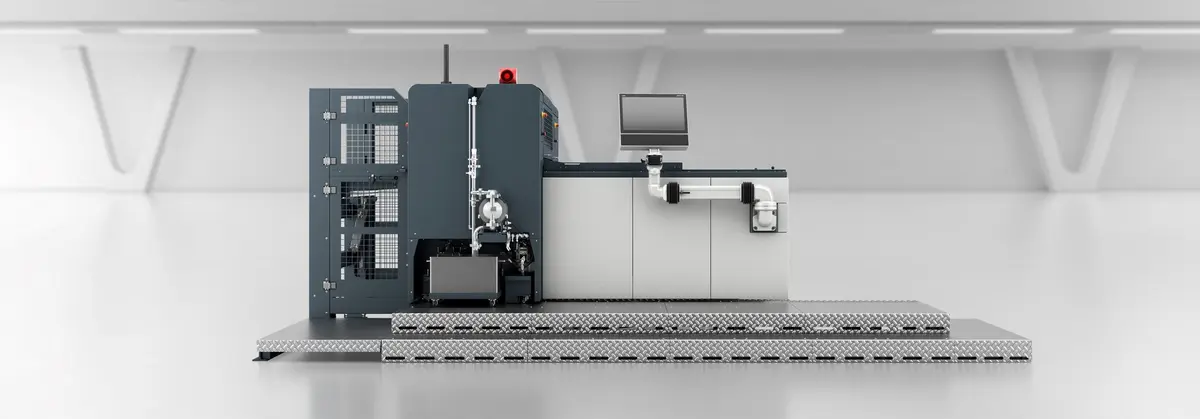

MetalCoat 484
Advanced Automated Metal Coating Machine
The MetalCoat 484 advances process automation with automated washing and closed-loop thickness control for solvent and UV/LED coatings.
MetalCoat 484
Metal Coating Machine
- Stored job data and intuitive touch panels accelerate line setting
- Demand-driven power usage across the line supports reduced operating costs
- Motorised coating roller adjustments enable high automation and precision for challenging lacquers
- Automated coating unit washing increases uptime and reduces manual interaction
- Optional inline coating thickness control supports stable application and reduces material use
- HighEcon dryer with integrated air purification

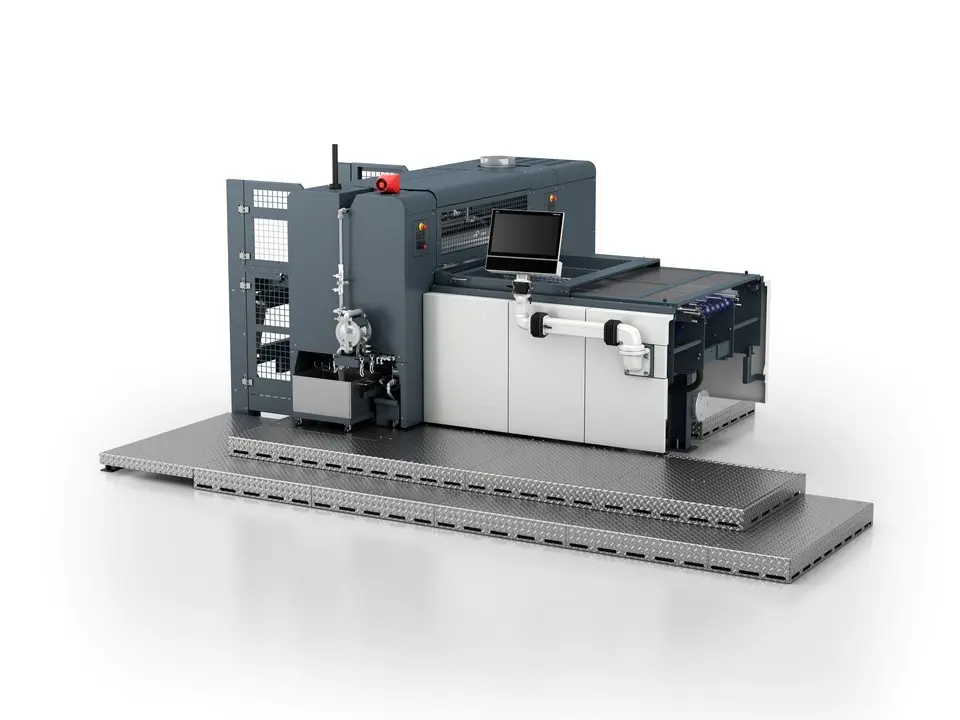

Advanced Coating Technology for Metal Decorating
Designed as a high-capacity coating machine for metal sheets, it combines extensive automation with high operational efficiency. At its core is a precise three-roller application system featuring direct drives. Process stability through automation is further supported by automated washing and closed-loop coating thickness control.

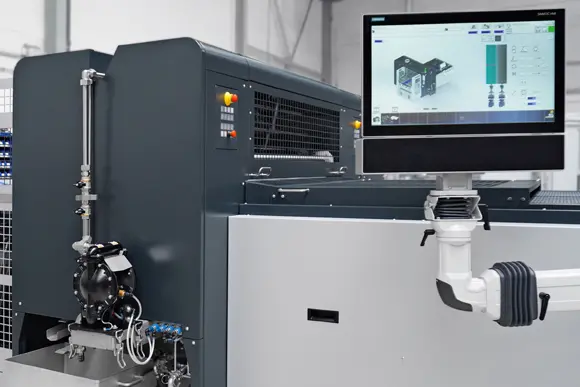

The coater parameters are managed via the central HMI. By storing job settings for repeat runs, the machine reduces setup times and manual adjustments. Features such as the optional closed-loop coating thickness control, reduce operator workload and lacquer consumption and enable a consistent quality throughout the production run.
Productivity remains the focus during cleaning as well: an automated washing system reduces manual tasks and shortens the changeover process. Whether processing solvent-based or UV/UV-LED coatings, the MetalCoat 484 delivers consistent quality. Centralised control enables operators to directly control all line components. This applies both to standalone coating lines and to inline solutions following a printing machine.
- High register accuracy achieved via vacuum belts and defined mechanical stops
- Electronic format settings
- Demand-oriented settings according to sheet weight
- Storable settings for repeat or similar jobs
- Consistent coating distribution via three-roller technology
- Direct drive technology for coating rollers
- Automatic detection of the coating cylinder diameter
- Speed and pressure settings for all rollers adjustable via touchscreen
- Memory function for fast setup of repeat or similar jobs
- Controlled extraction of solvent-laden air

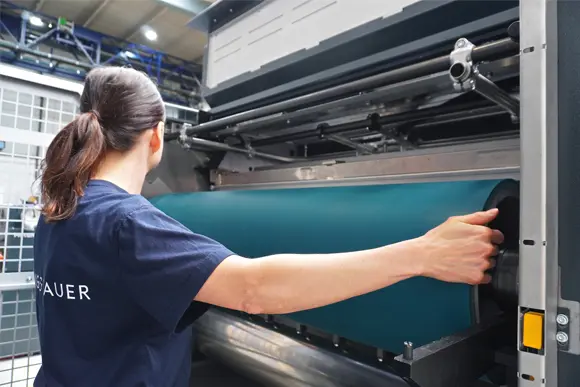

- Cylinder changes via integrated lifting device and rail roll-out
- Laser-assisted zero setting for spot coating
- Quick-fit-kit for external part cleaning and reduced changeover times
- Quick-release varnish pump on a platform

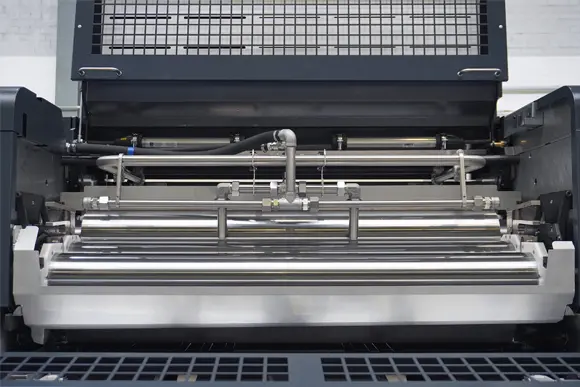

- Automated washing system for three-roller coating units
- Automated washing of all rollers via advanced Direct Drive technology
- Automatic solvent supply
- Reduces washing duration by up to 50 percent compared to manual cleaning procedures, supporting job changeover routines
- Predictable solvent consumption through predefined washing programmes
- Increases productivity by allowing parallel make-ready tasks

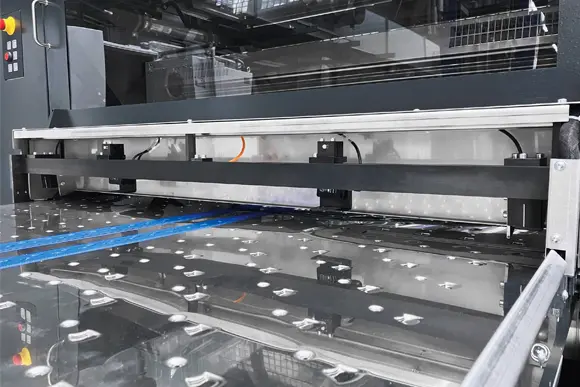

- Identifies skewed sheets plus lateral and longitudinal offset
- Sensors integrated within the coating machine delivery area
- Centralised operation via the line control HMI without requiring an additional control panel
- Helps lower sheet scrap rates by detecting misregistered sheets early
- Enables customised ejection of defective sheets
- Supports data transfer

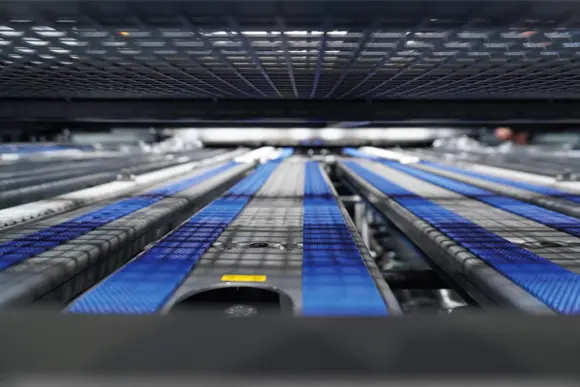

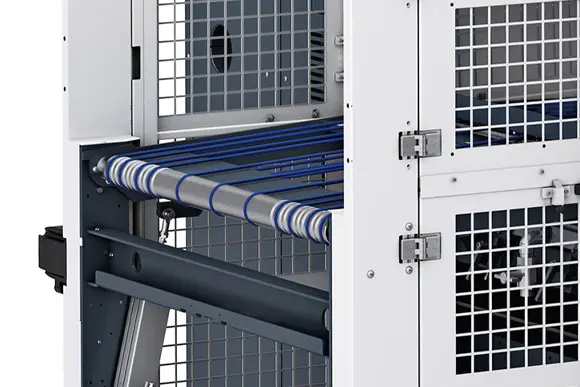

- Reliable sheet transport via round belts
- Small contact surfaces between the round belt and the sheet
- Short format changeovers supported by toolless adjustment
- Simplified cleaning procedure owing to reduced belt contact area
- Pneumatically supported lifting and lowering

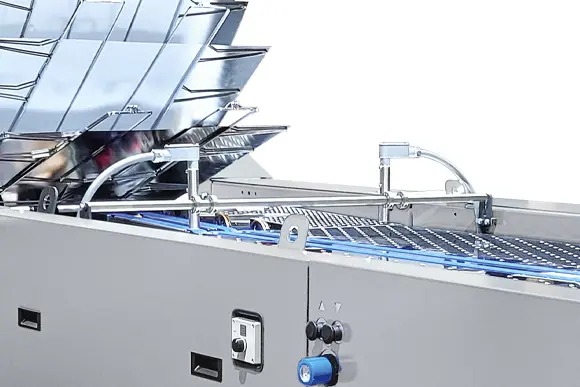

- Non-contact coating thickness measurement with established Specmetrix® equipment
- Real-time data transfer of measured values
- Adaptive nip control for film weight synchronisation via software
- Reduced coating consumption achieved through precise target range management
- Reduced operator dependency
- Accelerated setup procedures enabled by automated correction
- Designed to support lower operational costs through reduced gas consumption with the integrated HighEcon air purification system
- Uniform temperature distribution in the heating zone with AirFlow Pro with specially designed baffles
- Temperature control for prevention of tin flow
- Exhaust air cabin designed for controlled air extraction
- Regulated cooling zone featuring setpoint temperature control
Technical Data of the MetalCoat 484
| Standard | ||
|---|---|---|
Max. Sheet Format | 1,000 x 1,200 mm (39.37 x 47.24 in) | |
Min. Sheet Format | 510 x 710 mm (20.08 x 27.95 in) | |
Sheet Thickness | Tinplate: 0.12 – 0.50 mm (0.0047 – 0.0197 in) | |
Sheet Weight | 0.5 – 2.6 kg (1.102 – 5.732 lbs) | |
Sheet Material | Tinplate and ECCS (TFS) complying with EN 10202 | |
Sheet Cut | Straight | |
Max. Production Speed1) | 8,000 sheets/h | |
Coating Thickness (3-Roller Coating Unit) | 5 – 35 g/m² (0.1475 – 1.0323 oz/yd²) | |
Coating Thickness (Anilox Coating Unit) | 3 – 10 g/m² (0.0885 – 0.2949 oz/yd²) | |
Coating Types | Solvent based lacquers, UV or UV-LED coatings | |
1) Depending on the quality, format, and thickness of the sheets, coatings, and the specifications of the thermal dryer | ||
