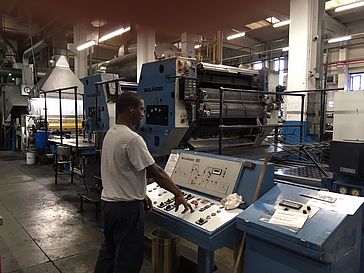

G782-Colour Mailänder 162 printing line

make: Mailänder
Type: 162
Year of built: 1983
Status: dismantled

The Mailänder printing line was in operation until Mai 2016. It consists of a feeder, type 760 and a two colour Mailänder printing machine.
A typical feature of the 162 is the transfer drum between the first and the second unit. The printing machine was retrofitted with a new TGC ink remote control system.
An oven is not included in the scope of supply.
The line is sold on behalf of the customer. The contact data will be supplied on request.

In agreement with Koenig & Bauer MetalPrint an overhaul can be offered.

G791-Colour Mailänder 169 printing machine

make: Mailänder
Type: 169
Year of built: 1986
Status: on stock

The Mailänder printing machine was in operation until March 2016. It consists of a feeder, type 730, a control console and a one colour Mailänder type 169 printing machine.
The printing machine was retrofitted with a new ink remote control system and a new printing cylinder.
Currently the machine is located in the Netherlands and can be visited there.
The line is sold on behalf of the customer. The contact data will be supplied on request.

In agreement with Koenig & Bauer MetalPrint an overhaul can be offered.

G 81KBA-MetalPrint 6-Color MetalStar 2S

Make:              KBA-MetalPrint
Type:              6-Color MetalStar 2S Refurbished
Year of biult:  2019
Status:           in process

The MetalStar press is a refurbished Rapida printing machine technically based on the proven design principles of KBA metal decorating presses.

Through specifically approved adaptations and modifications, these machines are successfully capable for metal sheet printing. In particular the solid construction of the printing units with lower substructure frame for double sized impression cylinders and transfer systems and upper substructure for plate cylinder, blanket cylinder and inking unit is especially suitable for printing on metal sheets.

Original spare parts are used to guarantee the same high standard of quality that customers have come to expect from a new KBA-MetalPrint press.

Standard Version six colour MetalStar 2S printing press, including:

• Modification and refurbishment of the stream feeder for metal decorating
• Retrofit KunziMatic patented registering system
• For metal decorating special designed gripper pads and tips in impression cylinders
• Additional sensors to each gripper system to monitor the sheets on the impression cylinders
• Retrofit chromed side guide / manually adjustable
• Cleaning and refurbishment of the press
• New covering of the rollers
• New belt delivery

Areas of application:

• for conventional ink
• for UV ink
• for Hybrid (mixed operation using conventional and UV)

The configuration of the production line is individual.

Download:

MetalStar 2S-Flyer

G83Flexo-Scraping-System for coating machines types 4040, 470 and for 480

Make: KBA-MetalPrint
Type: Flexo Scraping System
Year of built: 2016
Status: ready for test purposes

The scraper blade is fixed into a quick clamp assembly which guarantees a really fast blade change.
The scope of delivery also includes a holder. With this holder it is possible to replace the worn-out scraper blade while the production is running.
Existing scraper blades can be still used after being modified.

Benefits:

• Fastest scraper blade change
• Considerably longer blade life
• Faster bedding-in of the scraper blade
• Reduced adjustment time

The Flexo-Scraping- System will be provided for test purposes. The installation however is liable to costs.

G85CREO Trendsetter VLF 4557 with Haase gumming machine and drying oven

Make: Kodakt/Haase
Type: CtP
Year of built: 2002
Status: dismantled

This CREO Trendsetter from 2002 is a plate exposer for semi-automatic or automatic operation. It offers a good image quality and is easy to maintain.
The plate exposer is suitable for a plate size of minimum 394 x 508 mm and maximum 1.143 x 1.448 mm. It is possible to expose up to 11 plates per hour.
Further a gumming machine and a drying oven from manufacturer Haase is available. The heating power of the oven is 14,4 kW.

The installation is sold on behalf of the customer. The contact data will be supplied on request.

G 88Second Hand 2-colour Mailänder 122A printing and coating machine

Make:           Mailänder
Type:            122A printing machine
                     469 inline coating machine
Year of built: 122 A: 1991
                     469:   1989
Status:         dismantled

This printing and coating line consists of a Mailänder feeder type 770, a two colour Mailänder type 122A printing machine and an inline Mailänder coating machine type 469. The LTG oven is not part of the delivery.

The printing machine has an automatic roller washing system, manual ink zone adjustment and is prepared for working with scroll sheets. The coating machine has a gripper cylinder for spot coating. The coating machine was completed in 2004 with new electrics, consisting of main motor, PLC control and electronic synchronisation with the printing press.

The machine is currently located in Turkey and can be visited there. It has been dismantled to make space for a new Mailänder 280.

The line is sold on behalf of the customer. The contact data will be supplied on request.

In agreement with KBA-MetalPrint an overhaul can be offered.

G 90Second Hand Tandem Coating Line

Make:             LTG Mailänder
Type:              Mailänder 460
                       LTG-Trockner
Year of built:  1978
Status:           In Produktion

This tandem coating line consists of:

• Feeder type 760
• Mailänder coating machine type 466
• LTG pre-drying oven with 9 m tunnel length
• Mailänder inline coating machine type 469
• LTG main drying oven with 33 m tunnel length
• Single stacker

The coating machines have been designed for spot coating. The maximum sheet size is 950 x 1.150

The line is located in Italy and can be visited there while in production.

The tandem line is sold on behalf of a third party. The contact data will be supplied on request.

G 92Second Hand 2-Colour Mailänder 162 metal printing press

Make:             LTG Mailänder
Type:              Mailänder 162
Year of built:   1976
Status:           dismantled

The Mailänder metal printing press type 162 with feeder type 760 was manufactured in 1976. The maximum sheet format is 1.145 x 945 mm. A typical feature of the 162 is the transfer drum between the first and the second unit.

All six cylinders have been changed in 2002. In 2008 a TGC alcohol dampening system with Baldwin cooler has been installed.

An oven is not included in the scope of supply.

The line is sold on behalf of the customer. The contact data will be supplied on request.
